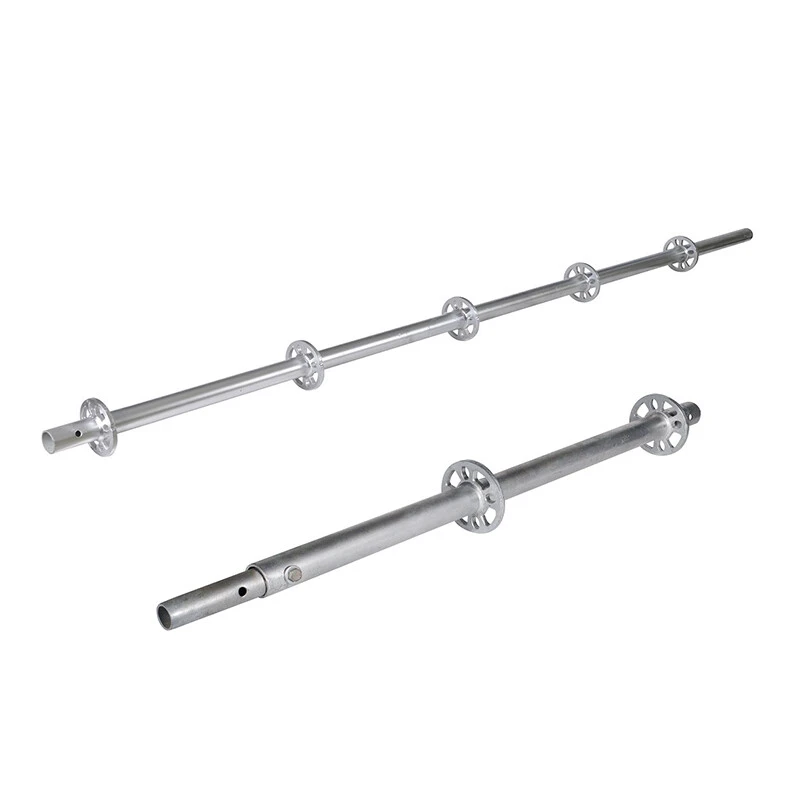

Made of steel with galvanized finishing, the Ringlock Standards are a robust and durable scaffolding component, as well as the main load bearing component. With welded rosettes, Standards provide a quick and secure assembly, support heavy loads, and meets safety standards as they allow to attach personal protective equipment. With multiple lengths available, the Standards are one of the core components that ensure Ringlock its efficiency and adaptability.



Standard: EN12811

Tube diameter: 48.3mm* 3.25mm

Steel Grade: Q355B

Surface treatment: Hot Dip Galvanized




Product Code

Description

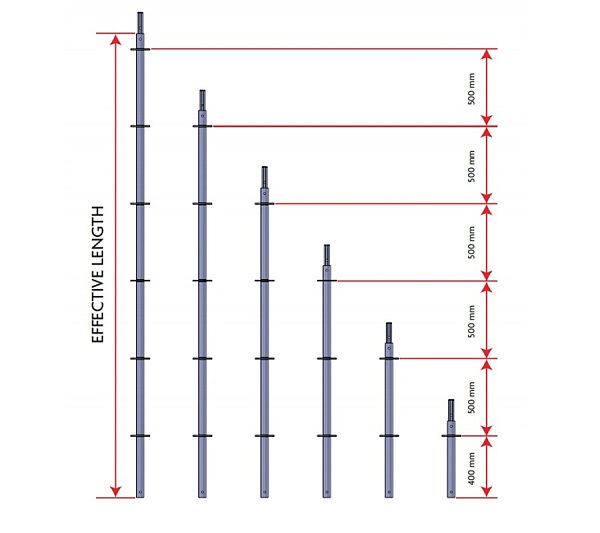

Effective Length (mm)

Weight approx. [kg]

RLS050

1 Ring Vertical W/Spigot

500

3.27

RLS100

2 Ring Vertical W/Spigot

1000

5.71

RLS150

3 Ring Vertical W/Spigot

1500

8.14

RLS200

4 Ring Vertical W/Spigot

2000

10.58

RLS250

5 Ring Vertical W/Spigot

2500

13.01

RLS300

6 Ring Vertical W/Spigot

3000

15.45

RLS400

8 Ring Vertical W/Spigot

4000

20.32
