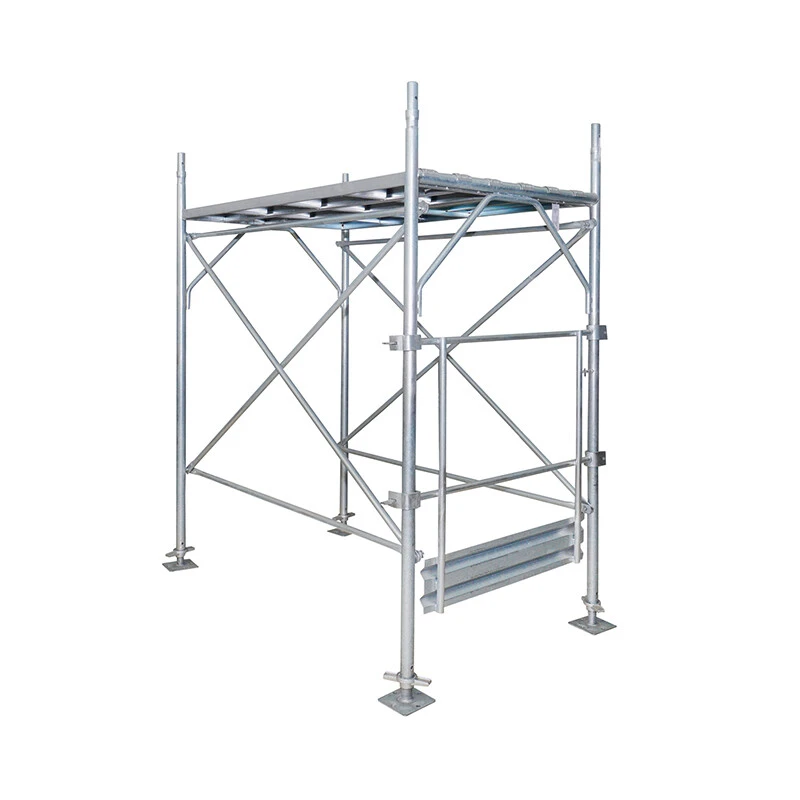

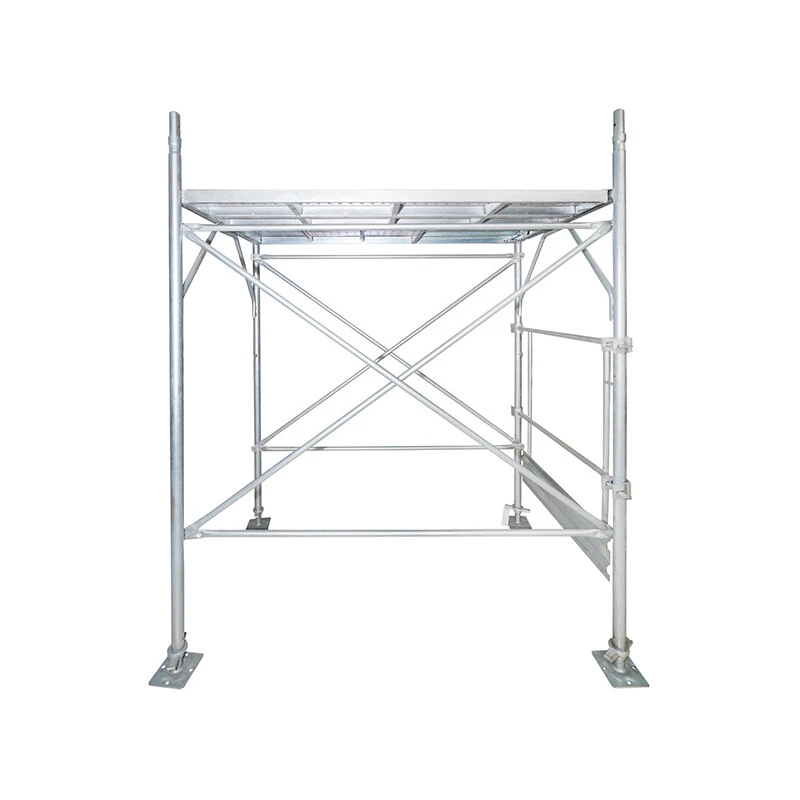

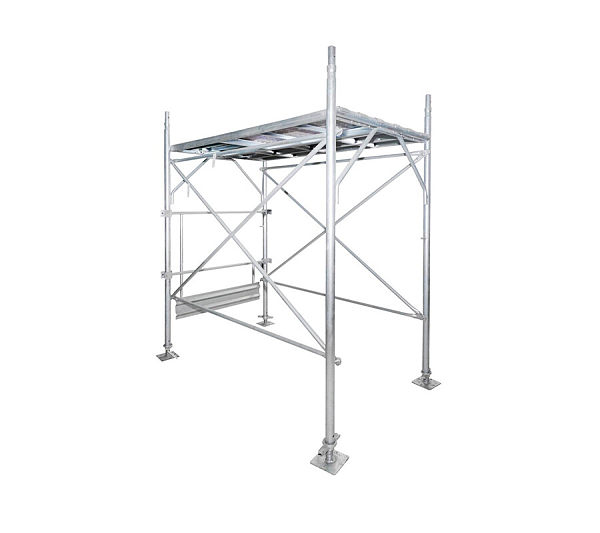

Italian gantry scaffolds are widely used in construction

Advantages:

- Easy to assemble/disassemble without special skills.

- High safety with locking devices and standardized design.

- Versatile for facade work, formwork support, and temporary structures.

Applications:

Suitable for buildings, bridges, and renovation projects, offering stability and efficiency in construction.


Standard: EN12811

Steel Grade: Q195/Q235

Surface treatment: Hot-Dip galvanized / Power Coated


Product Code

Description

Size( W*H)          (mm)

Weight approx. [kg]

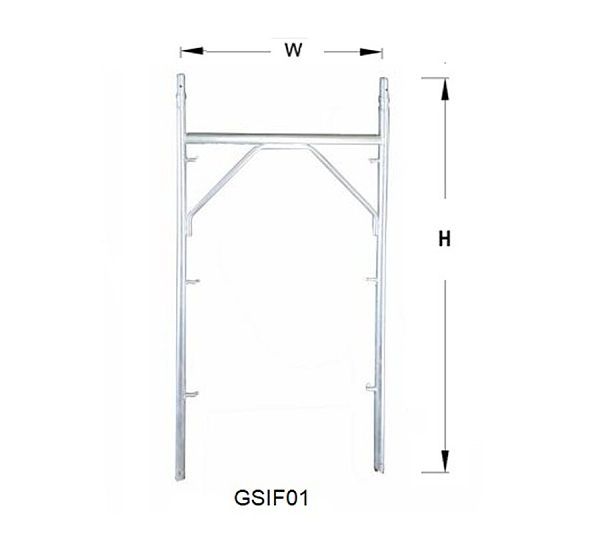

GSIF01

Frame

H:2000*W1050

20

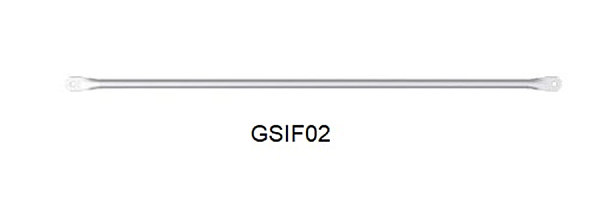

GSIF02

Ledger

26.9*2.3*1745

2.6

GSIF03

Diagonal Brace

26.9*2.3*2010

3.05

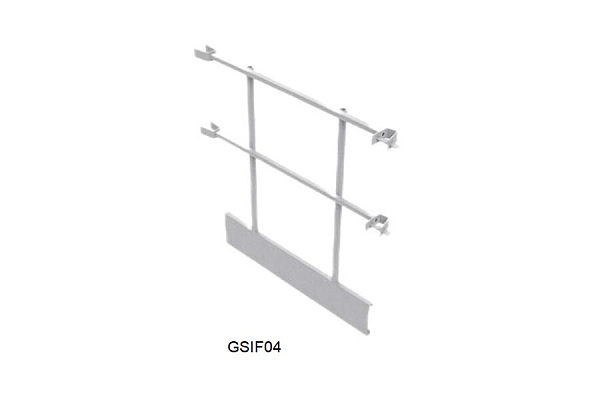

GSIF04

Guardrails for end side

W1050

12.8

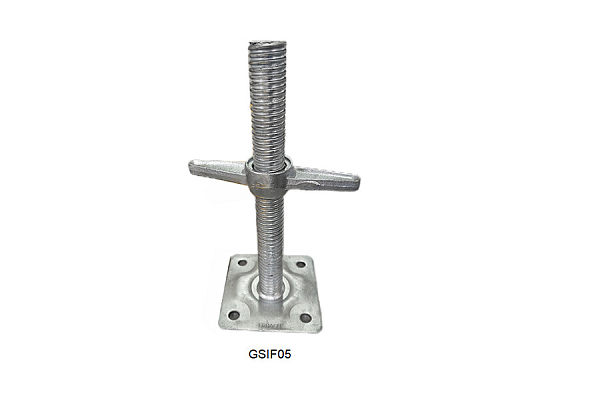

GSIF05

Base Jack

38*4*500

3.2

GSIF06

Steel Plank

1800*500*50*1.2

17.25

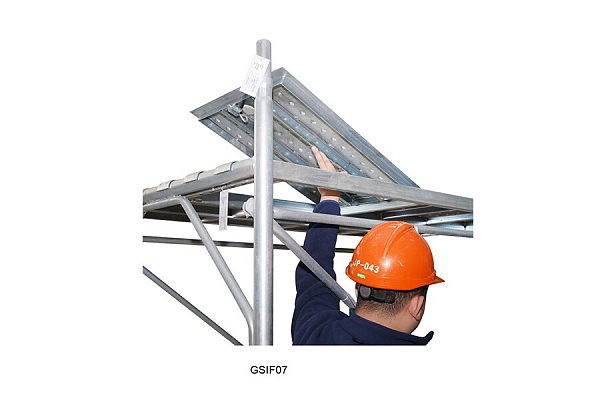

GSIF07

Plank with door

1800*500*50*1.2

23
