Popular in Europe, they meet EN standards for structural safety and durability.

Features

- Modular & Quick Assembly: Pre-fabricated components allow rapid setup without complex tools.

- High Load Capacity: Typically supports 2–3 kN/m² (standard) up to 5 kN/m² (heavy-duty).

- Safety Compliance: Equipped with locking mechanisms and fall-protection systems, meeting EU regulations (e.g., EN 12810, EN 12811).

- Corrosion Resistance: Hot-dip galvanized or painted finishes for outdoor use.

Applications

- Residential/commercial building construction.

- Bridge/tunnel projects and industrial maintenance.

- Temporary structures (e.g., event staging, scaffolding towers).

Advantages

- Cost-effective due to reusable components.

- Adaptable to various heights and layouts.

- Streamlined inspection and compliance with European safety norms.

European gantry scaffolds prioritize efficiency, safety, and sustainability, making them a staple in modern construction across the region.

Standard: EN12811

Main Tube: OD48*3.0mm

Material: Q235

Finish: hot galvanized

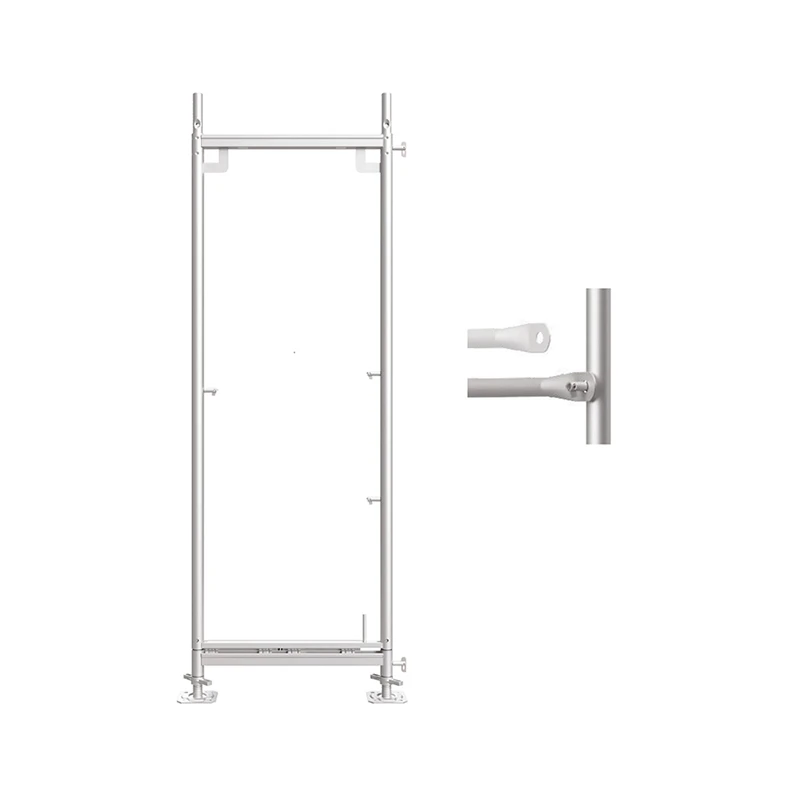

Frames

Made of steel, they contain built-in spigots, a support for toe boards and slide-in fittings for guardrails and diagonal braces. The upper U profile bears two steel-decks while the lower profile locks the ones below in position.

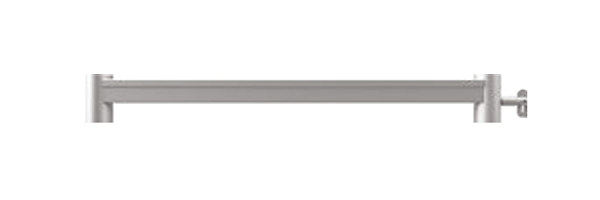

Start Ledger

Enables the assembly of steel decks on the ground level and the fixation of a diagonal brace on the initial frame.

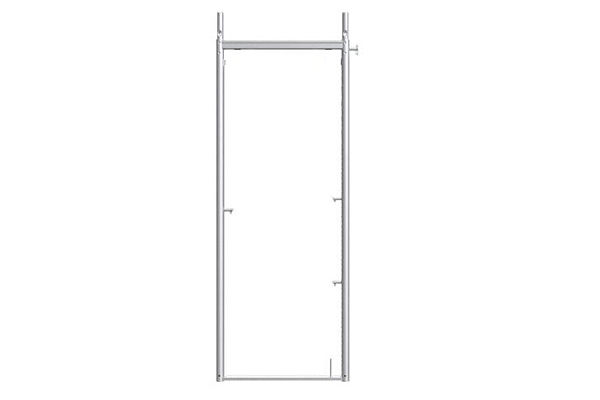

Top end frame

Replaces the frames on the extremities of the last level. Provided with slide-in fittings for fixing guardrails and a socket for toe boards.

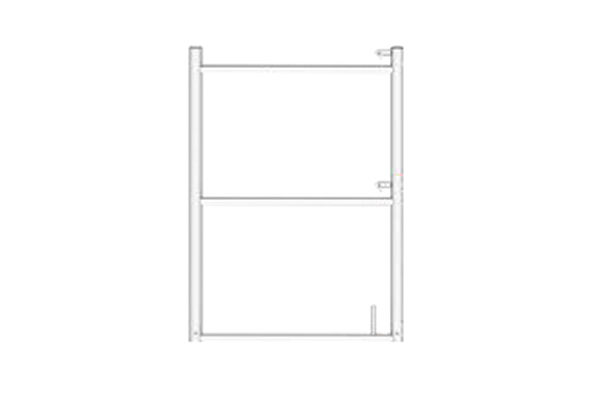

Top Intermediate frame

Replace the frames on the intermediate spans of the last level. Provided with slide-in fittings for fixing guardrails and a socket for toe boards.

Guardrails

Used to protect the rear or front perimeters, they are locked in position with a single push. Grant an increased transport and storage efficiency when compared to the advance guardrails.
