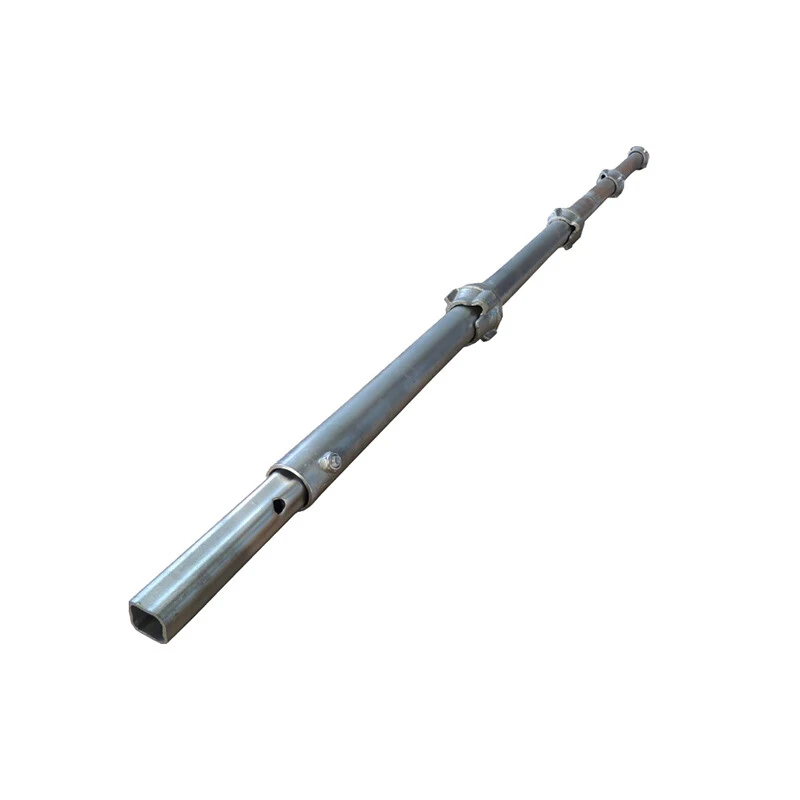

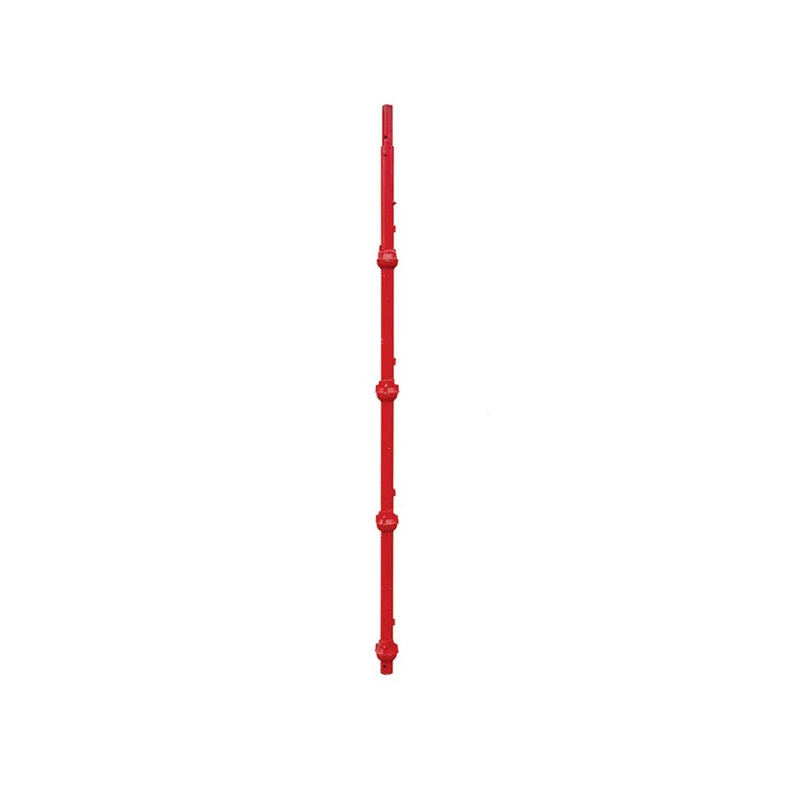

Cuplock Scaffolding vertical
Phone：+86 22-26283711
Email: inquiry@greatscaffolding.com
Whatsapp: +86 13612082335
Inquiry Now

Cuplock Vertical is load-bearing component for vertical support, ensuring structural integrity and stability under heavy loads.



Standard: EN12811

Material: Q235

Finish: painting, powder coating, Hot dip galvanized

Tickness of tube :48.3*3.2mm



Product Code

Description

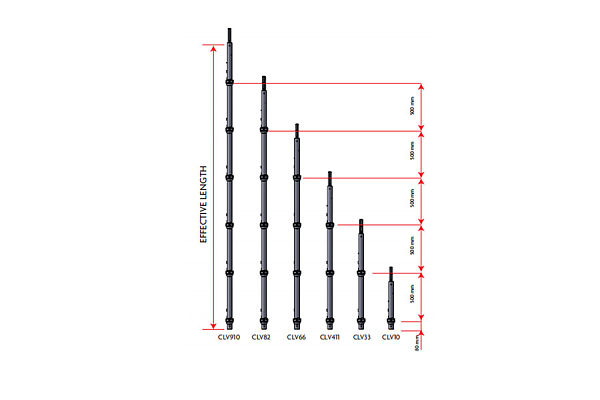

Effective Length              (mm)

Weight approx.（kg）

CLS050

1 Cup Standard W/Spigot

500

2.46

CLS100

2 Cup Standard W/Spigot

1000

4.91

CLS150

3 Cup Standard W/Spigot

1500

7.37

CLS200

4 Cup Standard W/Spigot

2000

9.82

CLS250

5 Cup Standard W/Spigot

2500

12.28

CLS300

6 Cup Standard W/Spigot

3000

14.73
