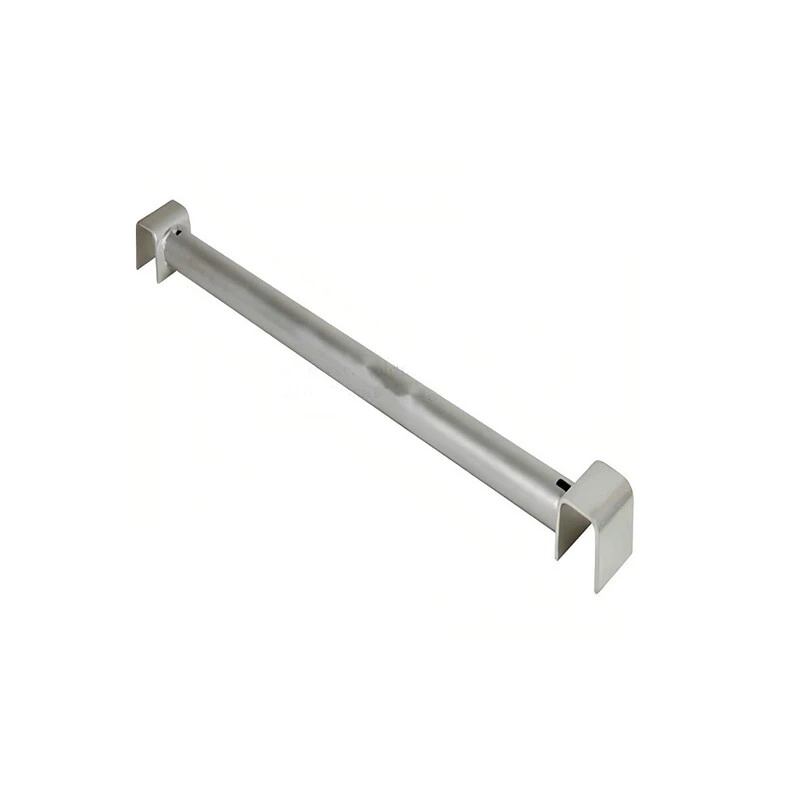

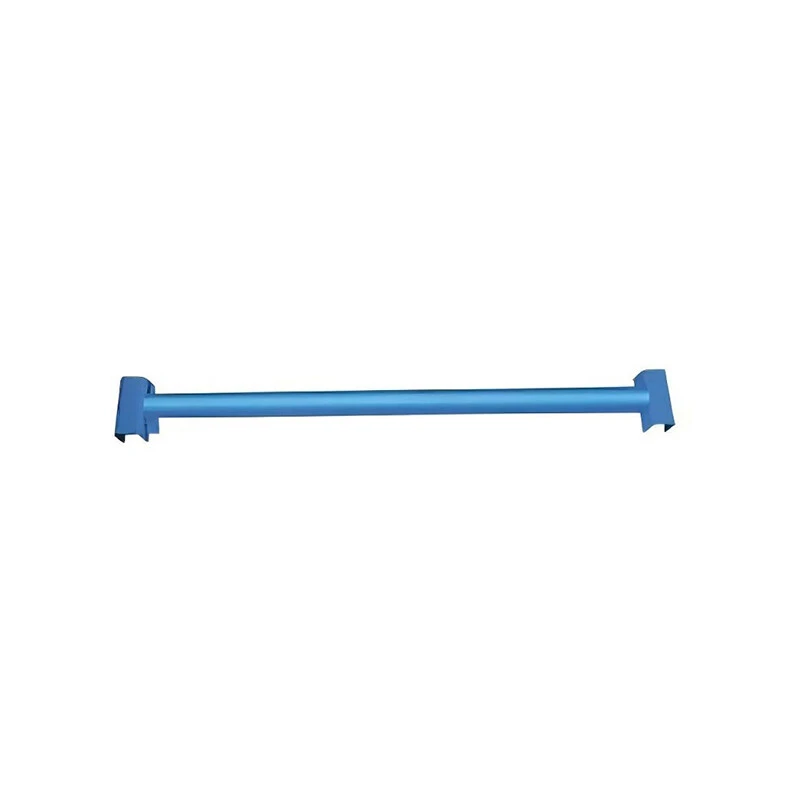

Cuplock Scaffolding Transom







Cuplock Transom Connects vertical standards, reinforces scaffold rigidity, distributes loads evenly, and prevents lateral deformation.

Material: Q235

Standard: EN12811

Finish: painting, powder coating, Hot dip galvanized

Tube size:48.3*3.2mm

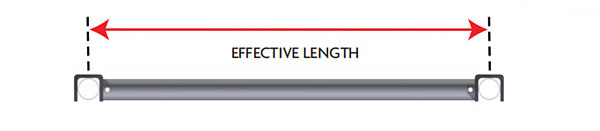

Product Code	Description	Effective Length (mm)	Weight approx.（kg）
CLT060	Cuplock Intermediate Transom	600	2.54
CLT090	Cuplock Intermediate Transom	900	3.61
CLT120	Cuplock Intermediate Transom	1200	4.68
CLT130	Cuplock Intermediate Transom	1300	5.04
CLT150	Cuplock Intermediate Transom	1500	5.75
CLT180	Cuplock Intermediate Transom	1800	6.82
CLT200	Cuplock Intermediate Transom	2000	7.53
CLT250	Cuplock Intermediate Transom	2500	9.31
CLT300	Cuplock Intermediate Transom	3000	11.09
